ISO 9000 2901920040 Atlas Copco Alternative Oil Separator Kit

  • 1
  • 2

Model Number : 2901920040

MOQ : 1

Packaging Details : Carton, Wooden cases, Plastic bag, etc, make the package as your requirement.

Place of Origin : CHINA

Brand Name : QINGDAO FUTAI

Certification : ISO 9001:2015

Part Number : 2901920040

Product Name : Air Oil Separator

Application : Atlas Copco Compressor

Warranty : 4000 hours

Material : HV glass fiber

Size : Standard Size

Certificate : ISO 9000

Efficiency : 99.9%

Contact Now

Atlas Copco 2901920040 OEM Screw Compressor Air Oil Separator

High quality oil separator

  • Elaborate: Fold

Both sides of the separation filter are provided with protective layer and support layer to avoid damage of the filter layer and make the separation effect more sufficient. The folded tooth shape is uniform, smooth transition, to ensure that the product filter material is not damaged, damage to different filter layer, adjust the equipment number to ensure the compactness between the layers.

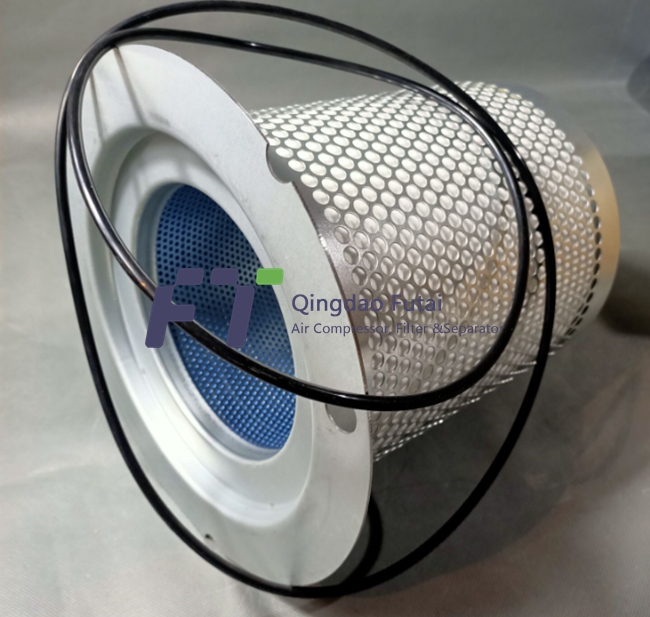

  • Sealing advantage

The gasket is made of special graphite asbestos gasket, which can withstand oil temperature 200^C. The gasket remains intact after the end of the product life.

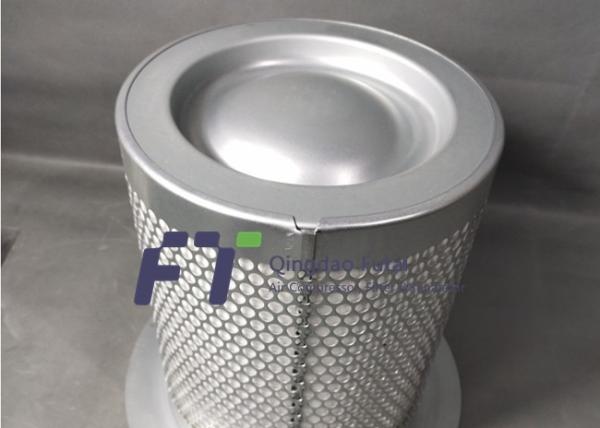

  • End cover

The end cover adopts sand blasting process to increase the surface roughness of bonding and enhance the filter layer on the basis of ensuring the tightness bonding strength with end cover.


Part No.2901920040
Body Height (H-0)270 mm Largest Inner Diameter (Ø IN-MAX)157 mm
Total Height (H-TOTAL)270 mm Outer diameter (Ø OUT)213 mm
Product Net Weight (WEIGHT)4.0 Kg Largest Outer Diameter (Ø OUT-MAX)289 mm


Features

  • Low pressure drop and energy saving
  • High quality filtration media
  • Low oil consumption
  • Reliable and stable
  • Compact design
  • Long life span

Application

The oil separator 2901920040 is designed for the Atlas Copco air compressor

AIR OIL SEPARATOR — SEPARATES THE OIL FROM THE COMPRESSED AIR

ISO 9000 2901920040 Atlas Copco Alternative Oil Separator Kit

ISO 9000 2901920040 Atlas Copco Alternative Oil Separator KitISO 9000 2901920040 Atlas Copco Alternative Oil Separator Kit
