Causes of failures/ apparent failures

• Scavenge line too short

Scavenge line does not reach into internal bowl at the base of the separator.

Result: high oil carry over

• Scavenge line too long

End of scavenge line seats against base of bowl forming a seal. No oil, or an insufficient quantity is sucked up by the scavenge line. Compressor manufacturer’s gap clearance is normally 1 to 2 mm alternatively, ensure tapered cut to end of scavenge line.

Result: high oil carry over

• Scavenge line blocked with dirt

Result: high oil carry over

• Scavenge line filter blocked

Some compressor models are fitted wit a small stainless steel mesh filter at some point in the scavenge line which is to be cleaned on a regular basis. If not cleaned the filter will block resulting in no scavenge action.

Result: high oil carry over.

• Scavenge line cracked / damaged

Allows atmospheric air to be ingested and insufficient or no oil removed from separator.

Result: high oil carry over.

Features

1. Low pressure drop and energy saving

2. High quality filtration media
3. Low oil consumption
4. Reliable and stable
5. Compact design
6. Long life span

Notes for air oil separator:

• The air oil separator can only be replaced, not cleaned;
• Do not connect the filter with a flange.
• The oil return pipe must be inserted into the bottom of the filter to avoid affecting the oil return.

AIR OIL SEPARATOR — SEPARATES THE OIL FROM THE COMPRESSED AIR

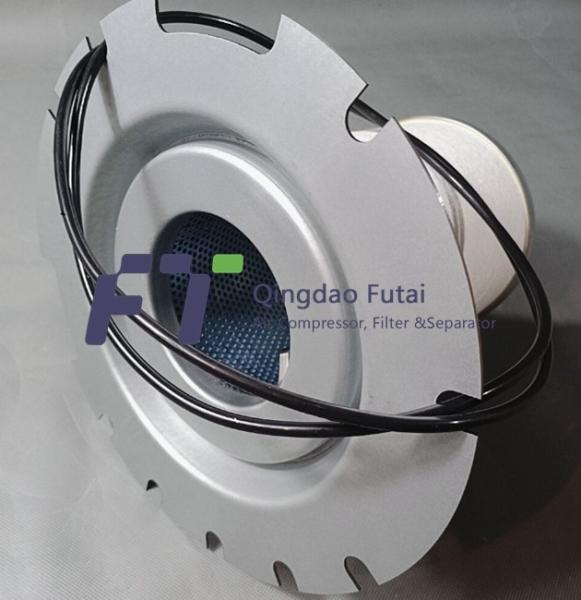

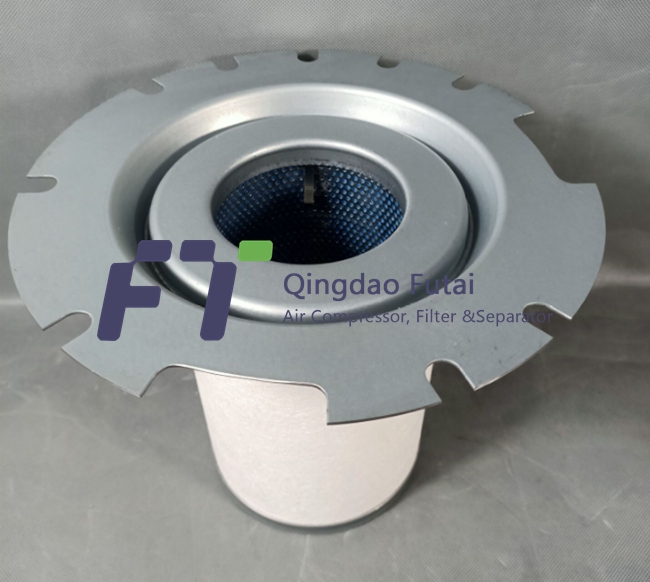

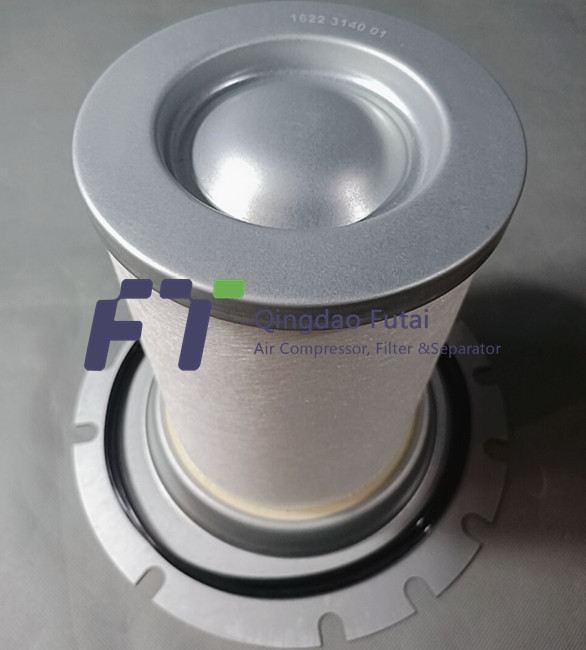

1622314001 Atlas Copco Screw Compressor Air Oil Separator

1622314001

FUTAI OEM Screw Compressor Air Oil Separator

Atlas Copco Alternative 1622314001 Screw Compressor Air Oil Separator Images
