Kobelco Replacement PCE03521 Air Compressor Separator Filter

Product Categories
Qingdao Futai Electromechanical Technology Co. Ltd.
Contact Now

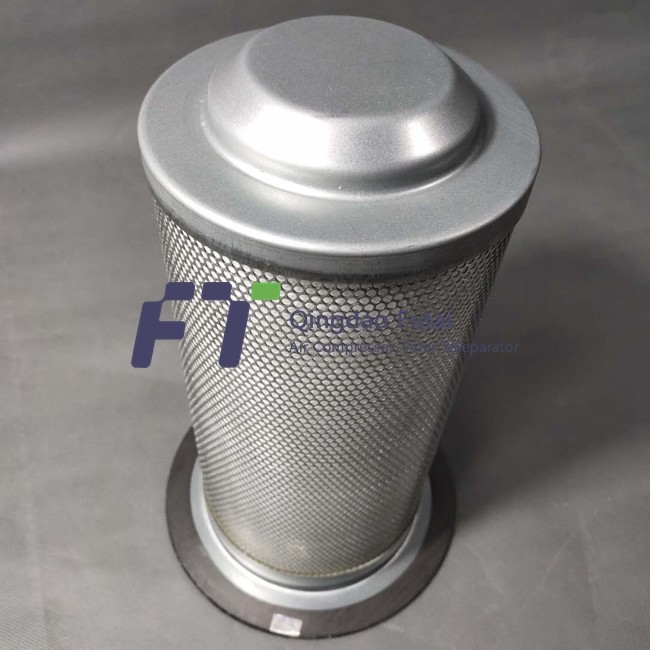

Kobelco Replacement PCE03521 Air Compressor Separator Filter

Model Number : P-CE03-521

MOQ : 1

Packaging Details : Carton, Wooden cases, Plastic bag, etc, make the package as your requirement.

Place of Origin : CHINA

Brand Name : QINGDAO FUTAI

Certification : ISO 9001:2015

Part Number : P-CE03-521

Product Name : Oil Separator Element

Application : KOBELCO Screw Air Compressor

Warranty : 4000 hours

Efficiency : 99%

Size : Standard Size

Condition : New

Material : Imported Material

Contact Now

Kobelco Replacement P-CE03-521 Screw Compressor Air Oil Separator

The use of compressed air is now an integral feature of every industrial firm. Compressors and vacuum pumps are used in the construction industry, mechanical engineering and highly sensitive sectors such as the food stuffs, pharmaceuticals and electrical engineering industries.

Working principle

Air/oil seperators work according to the "principle of coalescence". Micro-glass-fibre layers separate drops of oil from the compressed air and return them in large drops to the oil circuit of the compressor. The separation process is effective right down to the submicron range. This ensures that oil consumption in the compressors and oil entertainment into the compressed air networks are kept ro a minimum. Oil-vapour is not separated.

Air/oil separators can be used with all types of standard compressor lubricationg oils, irrespective of whether they are mineral-based, snythetic or partially synthetic products.

Air compressor Machine Model Oil Separator Air Filter Oil Filter
AG280A-15/SG280A-15 P-CE03-596/592 S-CE05-502 P-CE13-526
AG390A-22 P-CE03-596/592 S-CE05-503 P-CE13-526
SG390-22 P-CE03-596/592 S-CE05-503 P-CE13-526
VS420A-22 P-CE03-596/592 S-CE05-503 P-CE13-526
AG580A-30 P-CE03-577 S-CE05-503 P-CE13-528
SG580A-30 P-CE03-577 S-CE05-503 P-CE13-528
AG720A-37 P-CE03-577 S-CE05-504 P-CE13-528
SG702A-37 P-CE03-577 S-CE05-504 P-CE13-528
VS730A-37 P-CE03-577 S-CE05-504 P-CE13-528
AG1070A-55 P-CE03-595 P-CE05-576 P-CE13-533
SG1070A-55 P-CE03-595 P-CE05-576 P-CE13-533
VS1020A-55 P-CE03-595 P-CE05-576 P-CE13-533
AG1490A-75 P-CE03-595 P-CE05-576 P-CE13-533
SG1490A-75 P-CE03-595 P-CE05-576 P-CE13-533
VS1500A-75 P-CE03-595 P-CE05-576 P-CE13-533
CM6U-5 4A11L01001P1 P-CE05-518 P-CE13-510

Product parameters

  • Model: Separator Element P-CE03-521
  • Filter media: HV Fiberglass
  • Oil contained in compressed: below 3ppM
  • Filter media: fiberglass imported from HV&Lydall company
  • Filtration efficiency: 99.99%
  • Initial pressure differential: ≤0.02Mpa

AIR OIL SEPARATOR
