CompAir OEM Thermostat Valve Core Kit A11244474 Air Compressor Valves

All information about compressors and thermostatic valves
What is a thermostatic valve?
Thermostatic valve is one of the most important parts of compressor, which is the temperature regulator.
It uses a thermostat to measure and respond to changes in air temperature within the equipment, thus enabling the compressor to run smoothly and efficiently.
The extracted oil is usually very hot.
Up to 120 degrees Celsius before the compressor is turned off.
To reuse the oil for additional cooling, it must be passed through the oil cooler before being injected into the compressor room.
The thermostatic valve senses the oil temperature and determines how much cooling is required.
If scalded, the valve sends the oil through the cooler.
If it's not hot enough, it bypasses the cooler and sends the oil directly to the filter, where it can be recycled

TECHNICAL FEATURES

• Aluminum body;

• Fixed temperature values;

• Sharp rgulating accuracy;

• Regulating function independent of statio and dynamic oil pressure;

• Low pressure drop values;

• Solid design;

• Shock Proof,

• Functionally indipendent of istalled position;

• Maintenance-free;

• Long service life;


A11244474 Air Compressor Valves

A11244474 CompAir Thermostat Valve Kit

A11244474 CompAir Air Compressor Valves

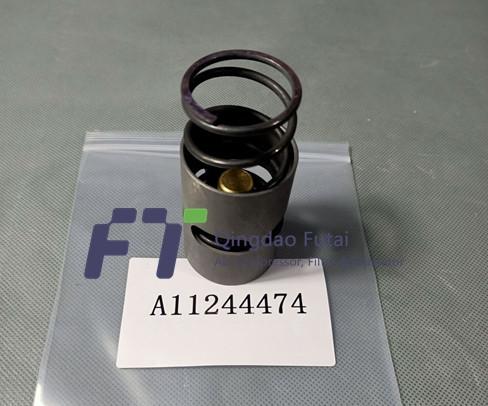

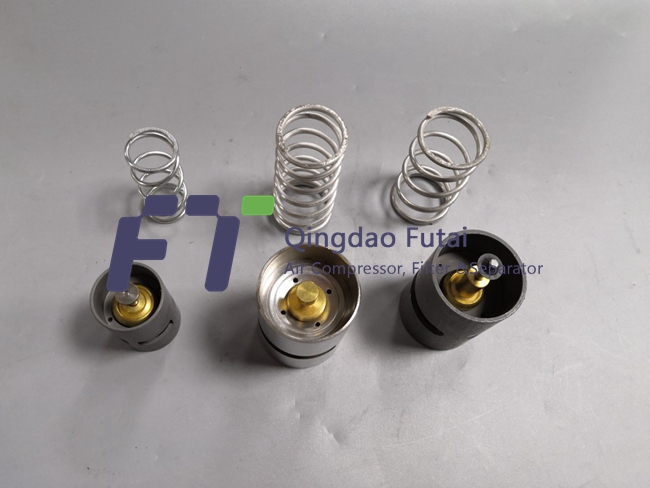

CompAir A11244474 Aluminum Alternative Air Compressor Valves Images
